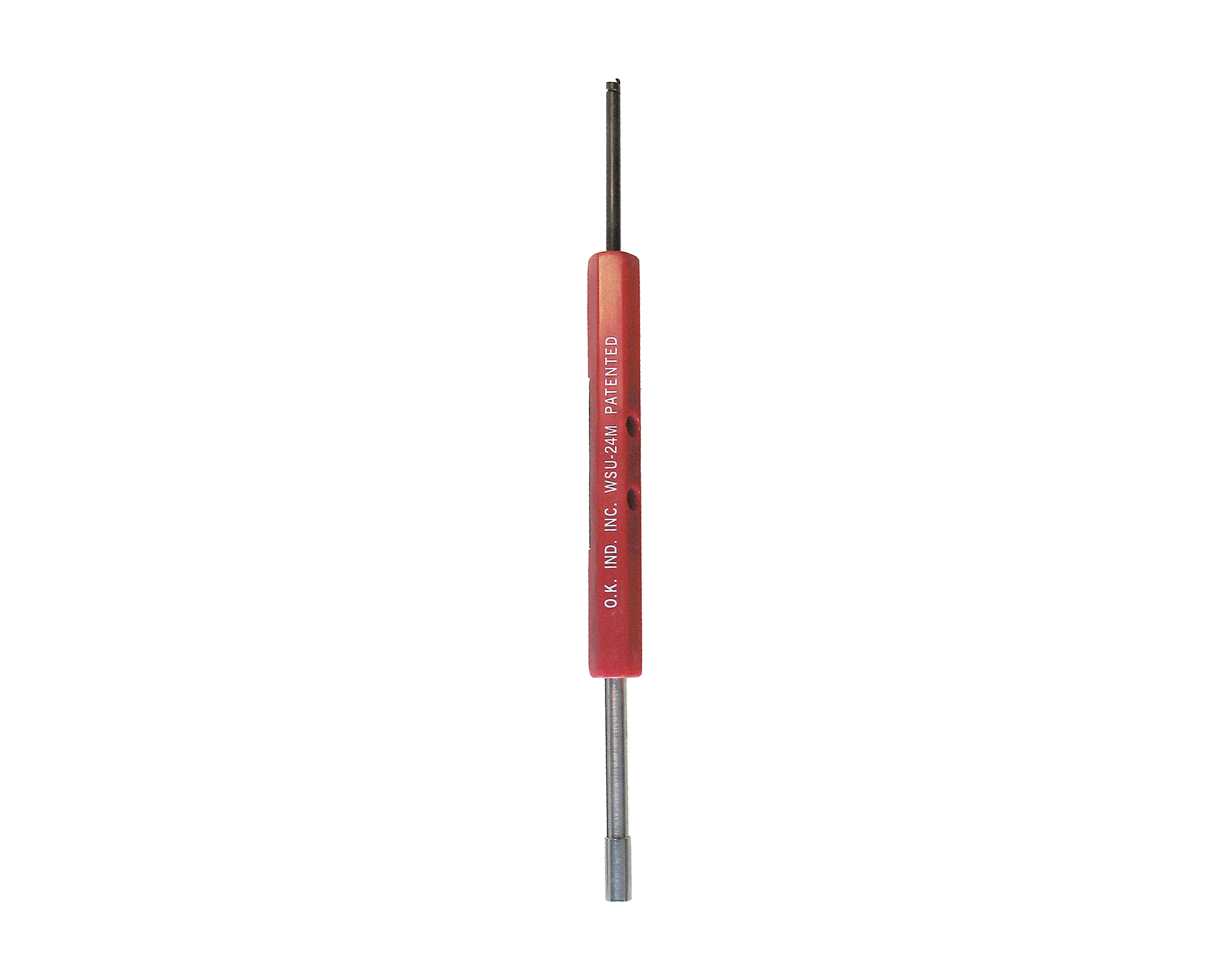

Jonard WSU-24M · 1 of 1 · Image: Jonard
Jonard WSU-24M
Tools · Wrap-Strip-Unwrap Tool, 24 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| hand-wrap-tool-wsu-tool?v=626 | hand-wrap-tool-wsu-tool?v=626 |
| Data%20Sheet%20-%20Wrap-Strip-Unwrap%20Tool_0.pdf | Data%20Sheet%20-%20Wrap-Strip-Unwrap%20Tool_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wrap Type | Modified |
|---|---|
| Wire gauge | 24 AWG (0.51 mm) |
| Maximum Insulation Diameter | 0.036" (0.91 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Terminal Hole Depth | 1.50" (38.1 mm) |
| Outside Diameter | 0.213" (5.4 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 6.63 in x 0.39 in x 0.38 in (16.83 cm x 0.98 cm x 0.97 cm) |
| Weight | 0.03 lb (13.62 g) |
