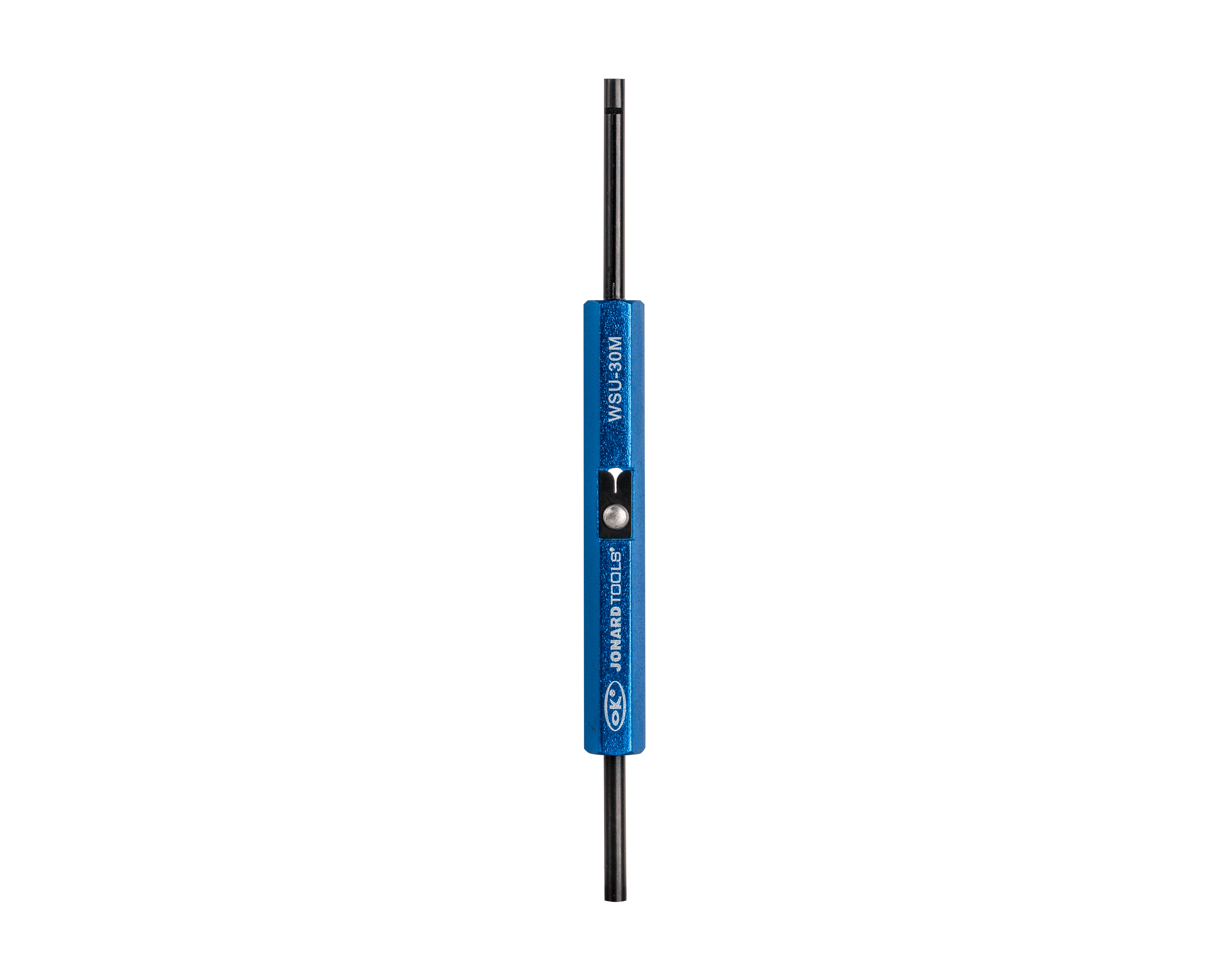

Jonard WSU-30M
Tools · Wrap-Strip-Unwrap Tool, 30 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| hand-wrap-tool-wsu-tool?v=629 | hand-wrap-tool-wsu-tool?v=629 |
| Data%20Sheet%20-%20Wrap-Strip-Unwrap%20Tool_0.pdf | Data%20Sheet%20-%20Wrap-Strip-Unwrap%20Tool_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Wrap Type | Modified |
|---|---|
| Wire gauge | 30 AWG (0.25 mm) |
| Maximum Insulation Diameter | 0.021" (0.53 mm) |
| Terminal Hole Diameter | 0.036" (0.91 mm) |
| Terminal Hole Depth | 1.50" (38.1 mm) |
| Outside Diameter | 0.125" (3.2 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Dimensions | 4.5 in x 0.36 in x 0.34 in (11.44 cm x 0.9 cm x 0.86 cm) |
| Weight | 0.03 lb (11.804 g) |
