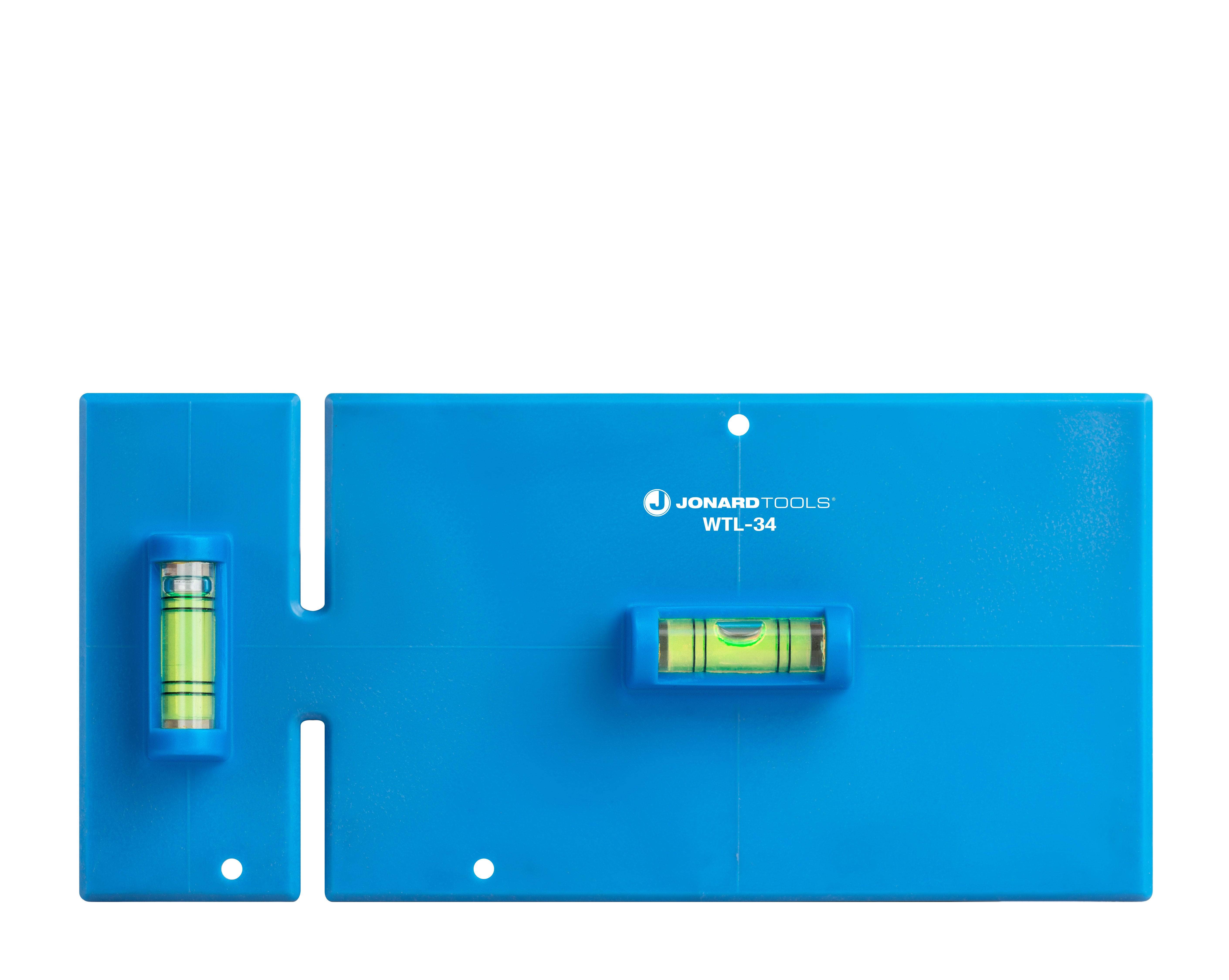

Jonard WTL-34 · 1 of 1 · Image: Jonard
Jonard WTL-34
Tools · Wall Box Template & Level for Non-Metallic Boxes, 3-Gang and 4-Gang
Specs come from the parts catalog. Wiring diagram
Documents & links
| wall-box-template-levels?v=945 | wall-box-template-levels?v=945 |
| Data%20Sheet%20-%20Wall%20Box%20Template%20%26%20Level%20for%20Non-Metallic%20Boxes%2C%203-Gang%20and%204-Gang%20-%20WTL-34_0.pdf | Data%20Sheet%20-%20Wall%20Box%20Template%20%26%20Level%20for%20Non-Metallic%20Boxes%2C%203-Gang%20and%204-Gang%20-%20WTL-34_0.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Electrical Box Type | Non-Metallic, Old Work |
|---|---|
| Number of Gangs | 3-Gang, 4-Gang |
| 3-Gang Cutout | 5.94" x 3.64" (15.09 cm x 9.25 cm) |
| 4-Gang Cutout | 7.71" x 3.64" (19.58 cm x 9.25 cm) |
| Material | Thermal Plastic |
| Color | Blue |
| Dimensions | 7.69 in x 3.65 in x 0.89 in (19.53 cm x 9.27 cm x 2.26 cm) |
| Weight | 0.17 lb (77.18 g) |
