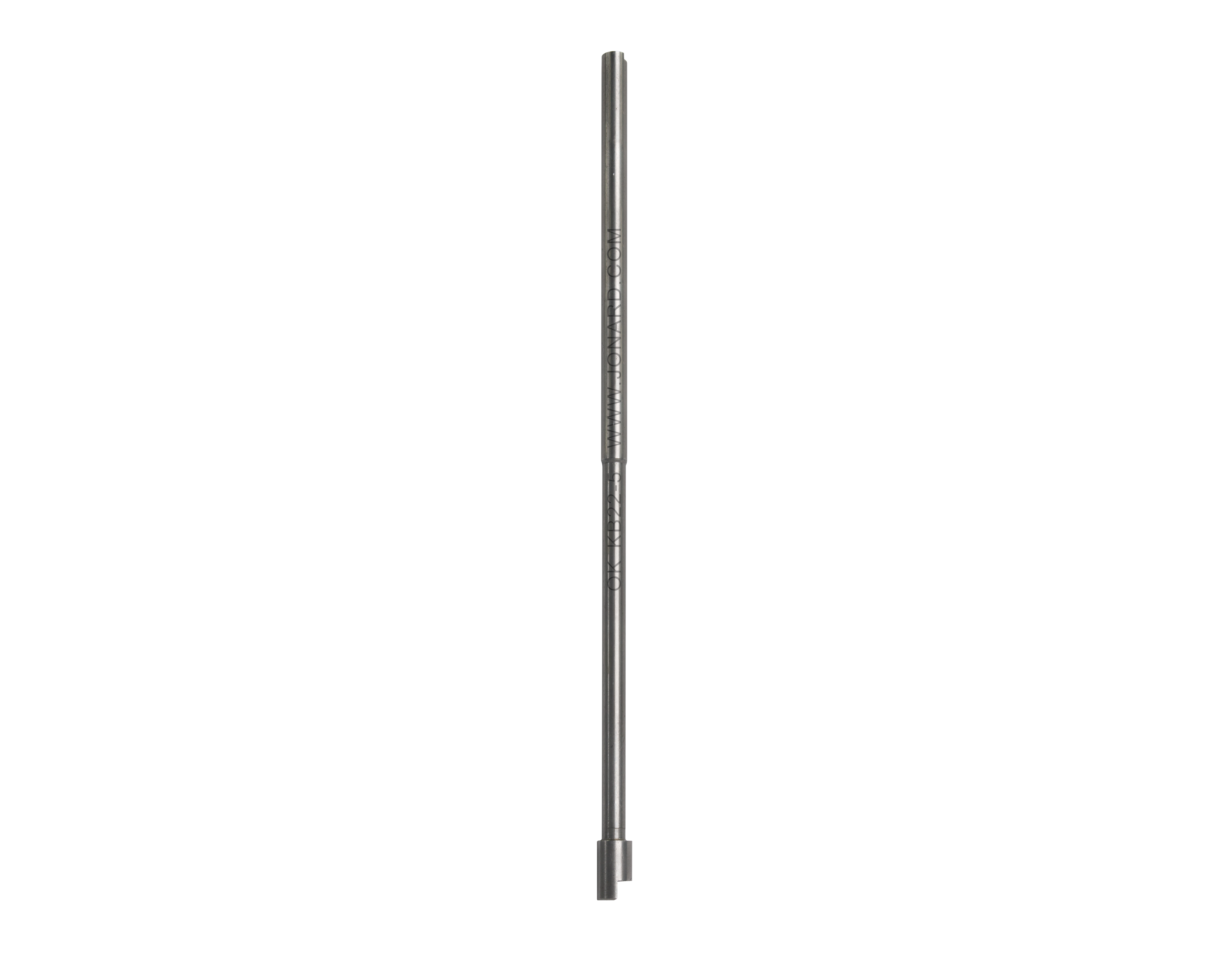

Jonard KB22-5 · 1 of 1 · Image: Jonard
Documents & links
| standard-bits-ww-bit-regular?v=875 | standard-bits-ww-bit-regular?v=875 |
| Jonard%20Tools%20Wire%20Wrap%20Overview.pdf | Jonard%20Tools%20Wire%20Wrap%20Overview.pdf |
Reviews
No reviews yet.
Where to Buy
Distribution
Market
Guides
Specs
| Sleeve Part No. | P2224-5 and P2224-5INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire gauge | 22 AWG (0.65 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.117" (2.97 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.03 lb (12.712 g) |
