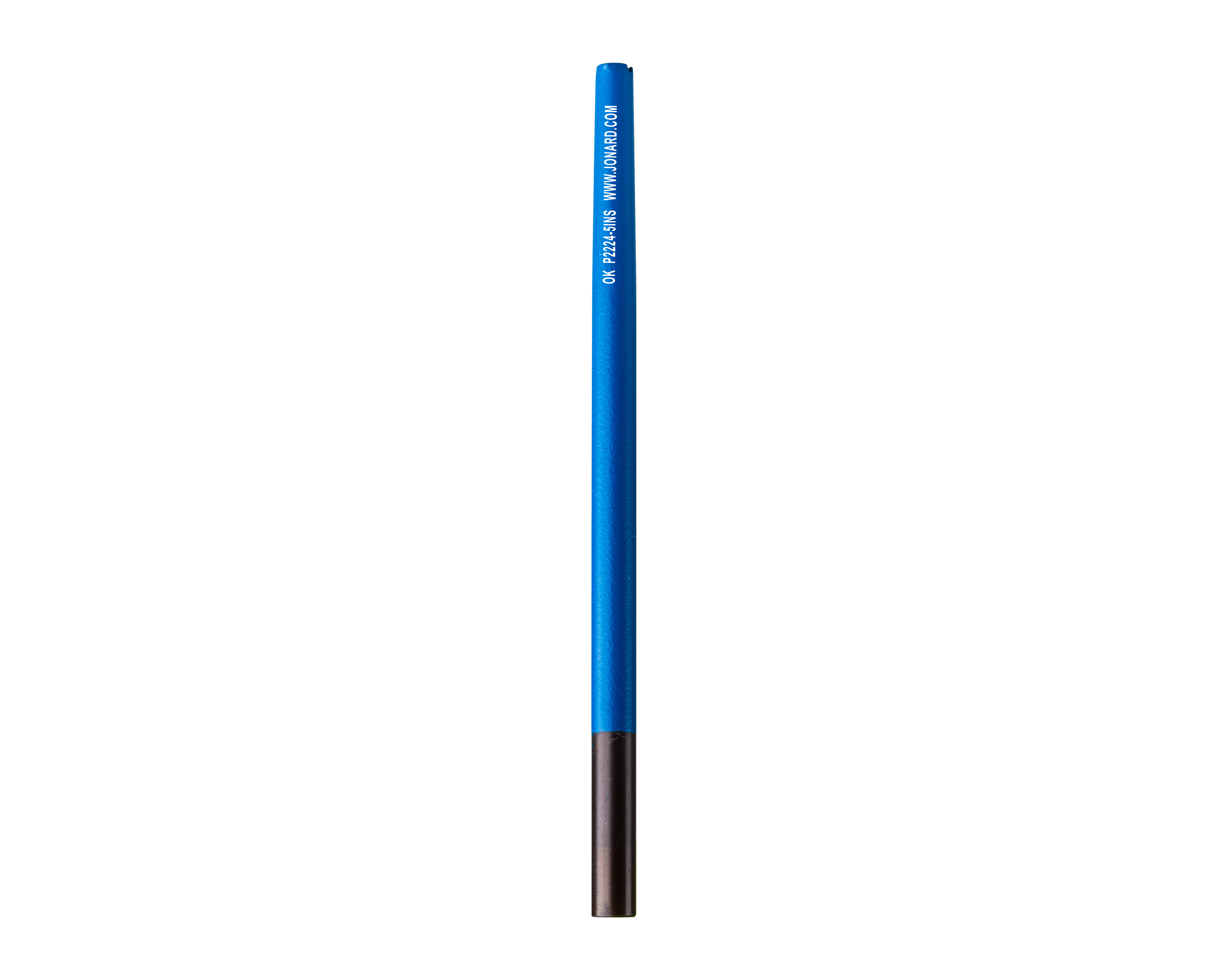

Jonard P2224-5INS · 1 of 1 · Image: Jonard
Jonard P2224-5INS
Tools · Insulated Wire Wrapping Sleeve, 22-24 AWG, 5"
Specs come from the parts catalog. Wiring diagram
Documents & links
| wire-wrap-sleeves-ww-sleeve-insulated?v=369 | wire-wrap-sleeves-ww-sleeve-insulated?v=369 |
| Jonard%20Tools%20Wire%20Wrap%20Overview.pdf | Jonard%20Tools%20Wire%20Wrap%20Overview.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Compatible Bit Part No. | KB22-5 |
|---|---|
| Wrap Function | Wrap |
| Wire gauge | 22-24 AWG (0.65 mm-0.50 mm) |
| Dimensions | 4.78 in x 0.25 in x 0.25 in (12.15 cm x 0.63 cm x 0.63 cm) |
| Weight | 0.03 lb (13.62 g) |
