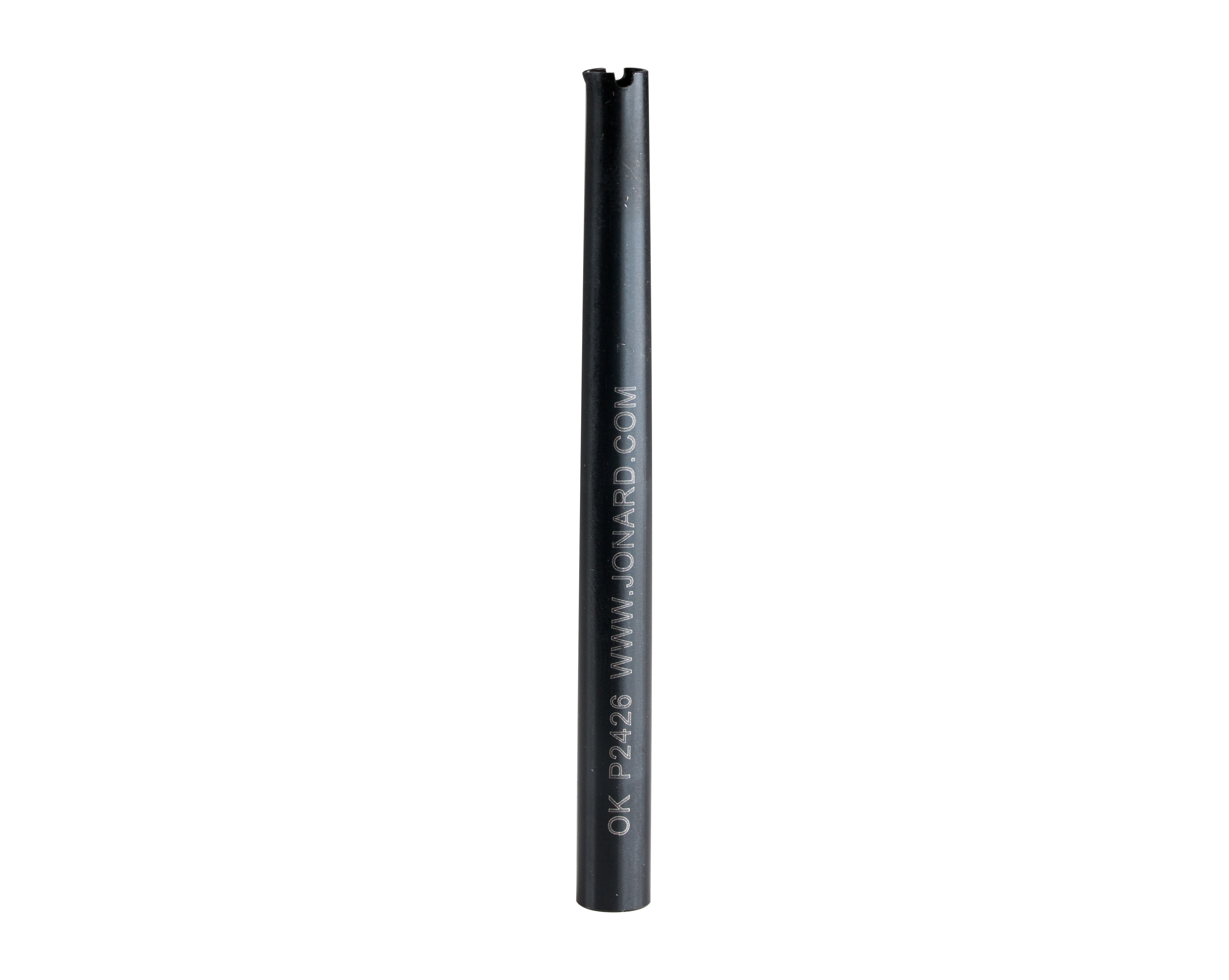

Jonard P2426 · 1 of 1 · Image: Jonard
Jonard P2426
Tools · Wire Wrapping Sleeve, 24-26 AWG
Specs come from the parts catalog. Wiring diagram
Documents & links
| wire-wrap-sleeves-ww-sleeve?v=886 | wire-wrap-sleeves-ww-sleeve?v=886 |
| Jonard%20Tools%20Wire%20Wrap%20Overview.pdf | Jonard%20Tools%20Wire%20Wrap%20Overview.pdf |
Outbound links only. HireLV does not host these files.
Reviews
Be the first to review this.
Sign in to write a review.
Add to my tools
Sign in to add this to your tools.
Specs
| Compatible Bit Part No. | KB24, KB26, WB2669M |
|---|---|
| Wrap Function | Wrap |
| Wire gauge | 24-26 AWG (0.50 mm-0.40 mm) |
| Dimensions | 2.78 in x 0.25 in x 0.25 in (7.07 cm x 0.63 cm x 0.63 cm) |
| Weight | 0.02 lb (8.172 g) |
